Advantages & Benefits

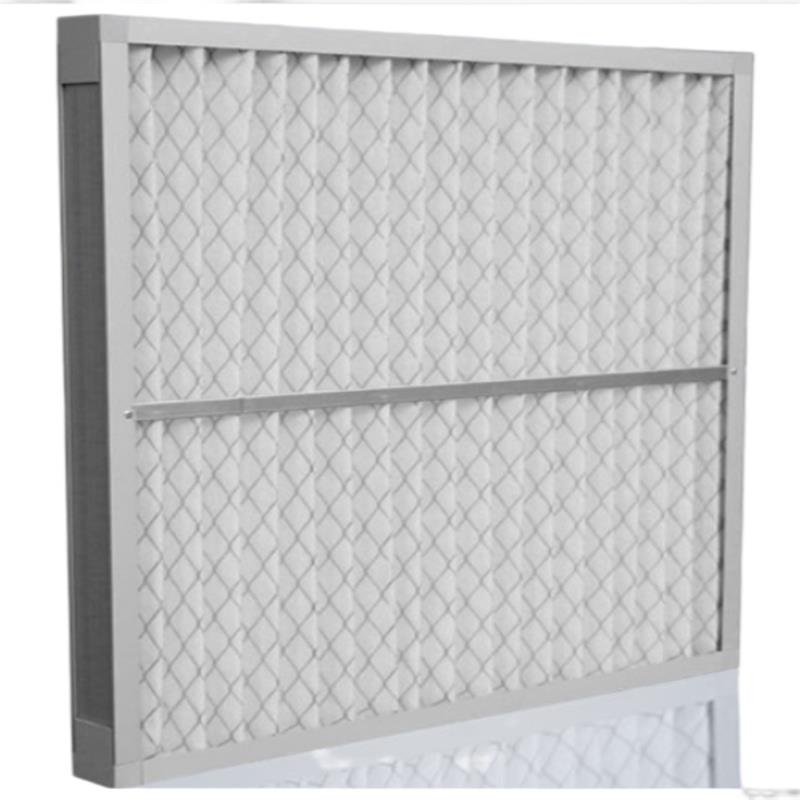

The lightweight plate structure, polycool synthetic fiber Filter material, and fluffy fiber structure ensure a high dust accumulation rate and a larger dust holding capacity.A primary effect Plate Filter is a type of air filter used to remove larger particles from the air, typically in industrial or commercial settings.
Specifications
Product Name: | Primary Effect Plate Filter |
Frame: | Aluminum frame (optional galvanized frame, stainless steel frame) |
Filter Material: | High quality polymerase synthetic fiber |
Filtration Efficiency: | G3/G4/M5 (EN779) |
Fire Rating: | UL900 Certification |
Continuous Operating Temperature: | ≤70°C |
Recommended Final Resistance: | <250pa<> |
Main Application: | Pre-filtration of Commercial and Industrial Ventilation and Air Conditioning Systems |
Protection Net: | Barbed Wire |
Dimensioning
Nominal Size（Inch） W×H×D (mm) | Actual Size（mm） W×H×D (mm) | Rated Initial Resistance（Pa） | Rated Face Velocity（m/s） | |
G3 | G4 | |||
12x24x1 | 289x594x22 | 63 | 75 |
2.5 |
20x24x1 | 492x594x22 | 63 | 75 | |
24x24x1 | 594x594x22 | 63 | 75 | |
12x24x2 | 289x594x46 | 45 | 55 | |
20x24x2 | 492x594x46 | 45 | 55 | |
24x24x2 | 594x594x46 | 45 | 55 | |
12x24x4 | 289x594x96 | 38 | 43 | |
20x24x4 | 492x594x96 | 38 | 43 | |
24x24x4 | 594x594x96 | 38 | 43 | |
Resistance maximum deviation range: ±15%
Primary Filter non-standard size can be customized according to customer needs
Product Advantages
High Dust Capture Efficiency: Effectively traps large dust particles and debris before they reach secondary filters.
Extended System Life: Reduces wear and tear on downstream filters and equipment.
Durable Construction: Long-lasting materials ensure consistent performance over extended periods.
Cost-Effective Solution: Low maintenance and replacement costs make it an economical choice.
Improved Air Quality: Helps maintain cleaner indoor air by removing primary contaminants.
Plate Design: Rigid and sturdy structure maintains shape and airflow even under high pressure.
Easy Installation: Standard dimensions allow quick replacement in most air handling units.
Low Resistance: Optimized design minimizes airflow resistance while maximizing dust capture.
Reusable Option: Some models can be cleaned and reused, reducing operational costs.
Wide Compatibility: Suitable for commercial, industrial, and residential HVAC systems.
Industrial Facilities: Factories, workshops, and manufacturing plants to protect equipment from dust.
Commercial Buildings: Office complexes, shopping malls, and hotels for improved indoor air quality.
Residential HVAC Systems: Homes and apartments to extend the life of secondary filters.
Air Handling Units (AHUs): Acts as the primary filter stage in large ventilation systems.
Public Spaces: Airports, schools, hospitals, and gyms to capture large airborne particles at the first stage.
Q1: What is the main function of a primary effect plate air filter?
A: It serves as the first stage of filtration, capturing large dust and debris to protect secondary filters and HVAC equipment.
Q2: How often should I replace this filter?
A: Replacement depends on air quality and usage, but generally every 3–6 months is recommended for optimal performance.
Q3: Is it compatible with my air handling unit?
A: Our primary effect plate filters come in standard sizes compatible with most HVAC systems. Please check dimensions before purchasing.
Q4: Can this filter be cleaned and reused?
A: Certain models are designed for cleaning and reuse. Follow manufacturer instructions for proper maintenance.
Q5: Will it improve indoor air quality?
A: Yes, by removing large particles before they reach secondary filters, it helps maintain cleaner indoor air and prolongs the life of other filters.
